[Gmsh] Questions

cacchione at stru.polimi.it cacchione at stru.polimi.it
Sat Mar 19 09:27:00 CET 2005


Hi,
I've downloaded gmsh from few days and now I'm reading the documentation.
I'm performing dynamic analysis of a 2D poly-crystalline structure, using
6 node triangles in my computations.
I'd like to know:

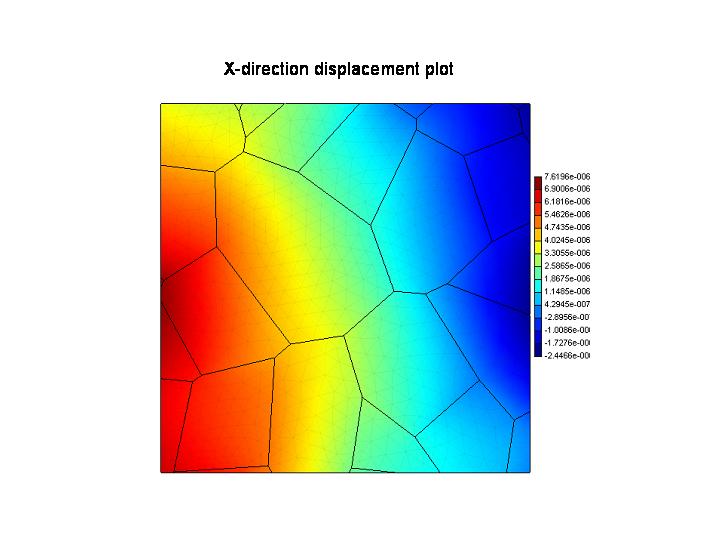

if it is possible, in the post-processing phase, to draw the colormaps of
displacement of stresses togheter with grain boundaries, i.e. the lines
that divides the area in grains. (Here attached there is a file jpg with
an example).
The program you wrote seems very good and it's helpful for people like me
that prefer open sources programs to commericals (often cracked) ones. I
really appreciated it.
Thank you in advance for any annswer,

Fabrizio Cacchione
PhD Student
Dept. Structural Engineering
Politecnico di Milano
Milano, Italy






-------------- next part --------------
A non-text attachment was scrubbed...
Name: Example.jpg
Type: image/pjpeg
Size: 31867 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20050319/f8a54eef/attachment.jpg>
