[Gmsh] GMSH

gary.w.gralton at power.alstom.com gary.w.gralton at power.alstom.com
Mon Sep 23 22:31:07 CEST 2002


Dear Jean-Francois & Christophe:
My company has a need for a mesh generator that can help us
solve a radiation transfer problem. The situation is detailed in the
attached files. Please advise if Gmsh can fill some or all of our
needs (with modification, if necessary).

Best wishes
Gary Gralton
Alstom Power
Windsor, CT, USA

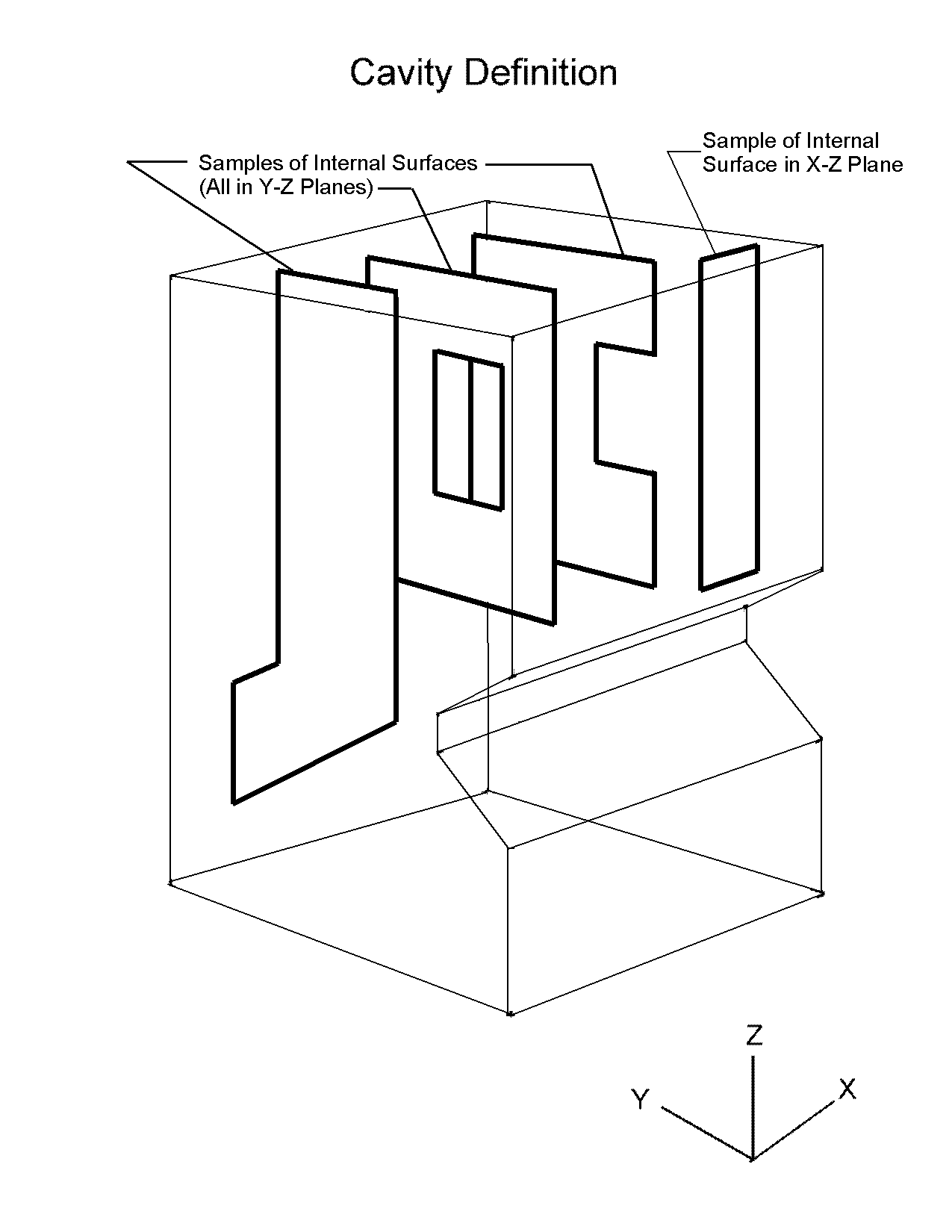

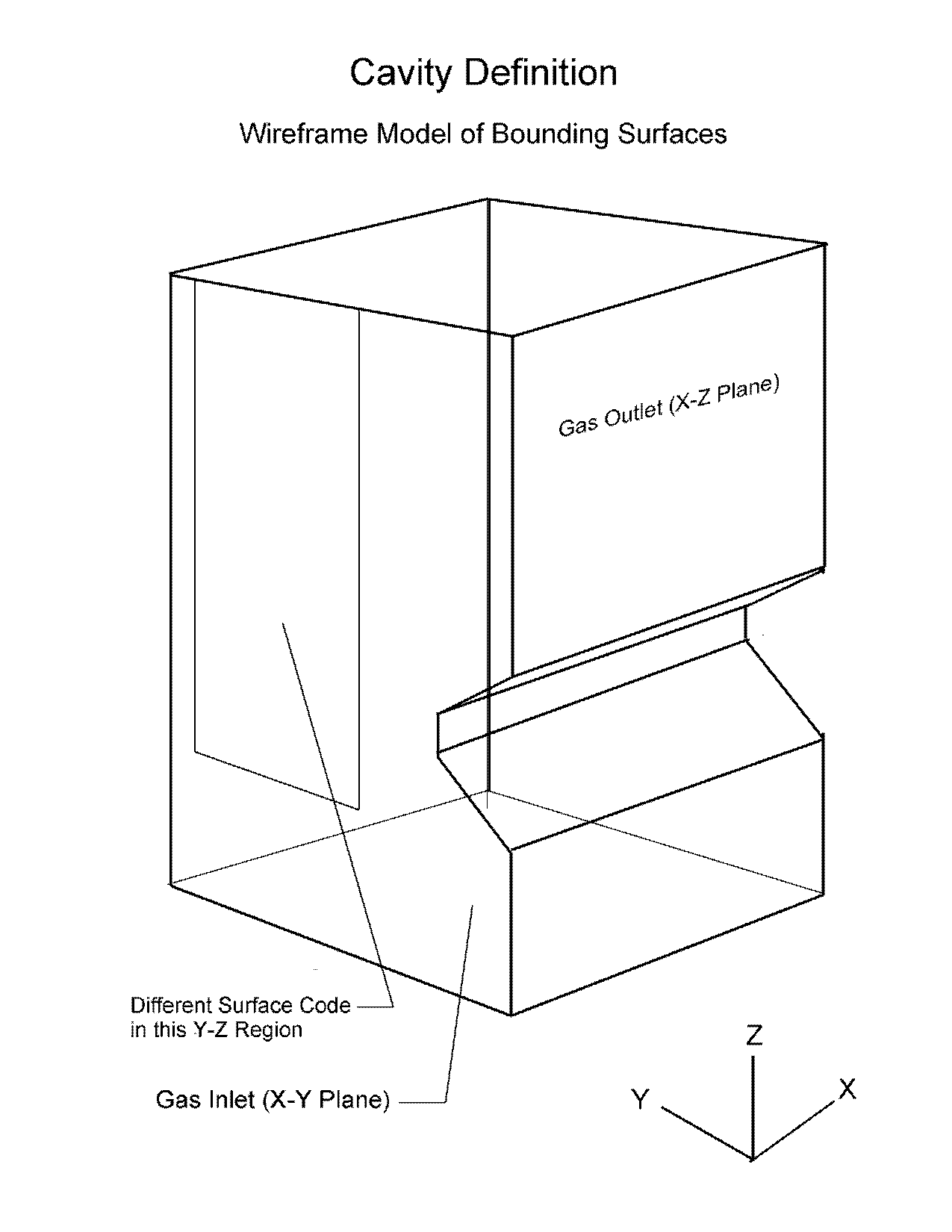

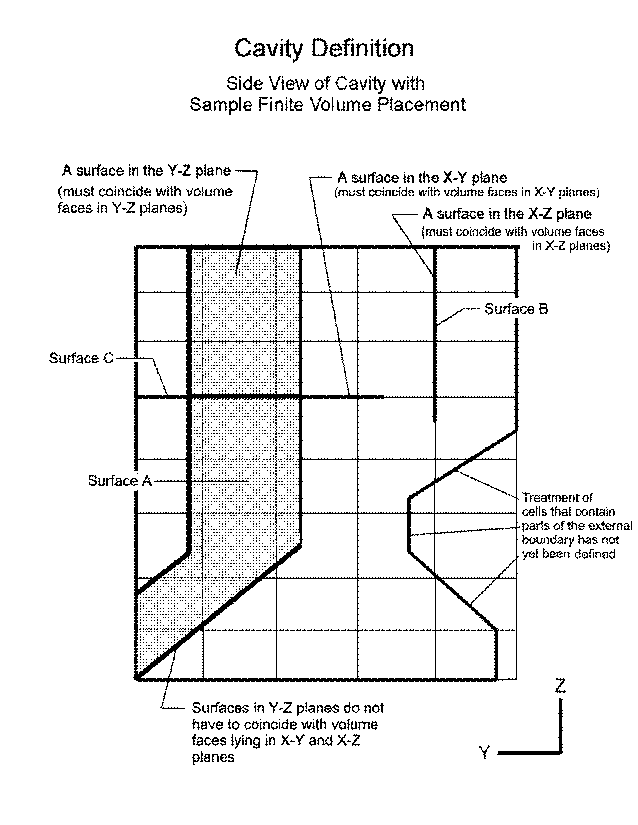

(See attached file: Mesh Generator)(See attached file: Figure9.gif)(See

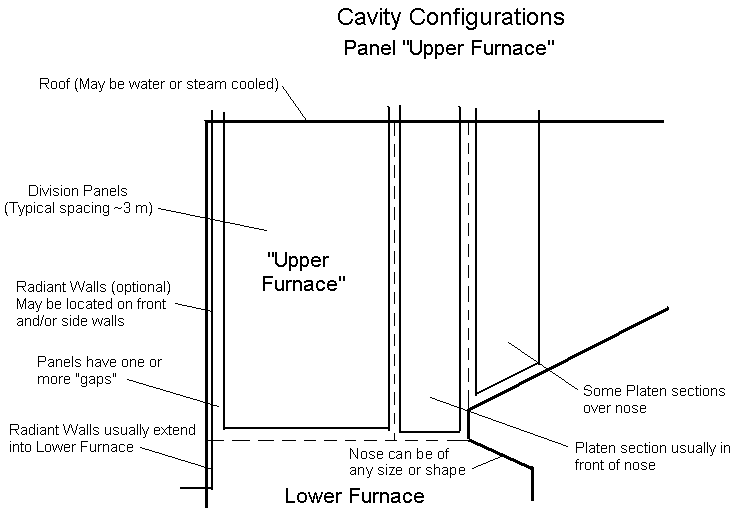

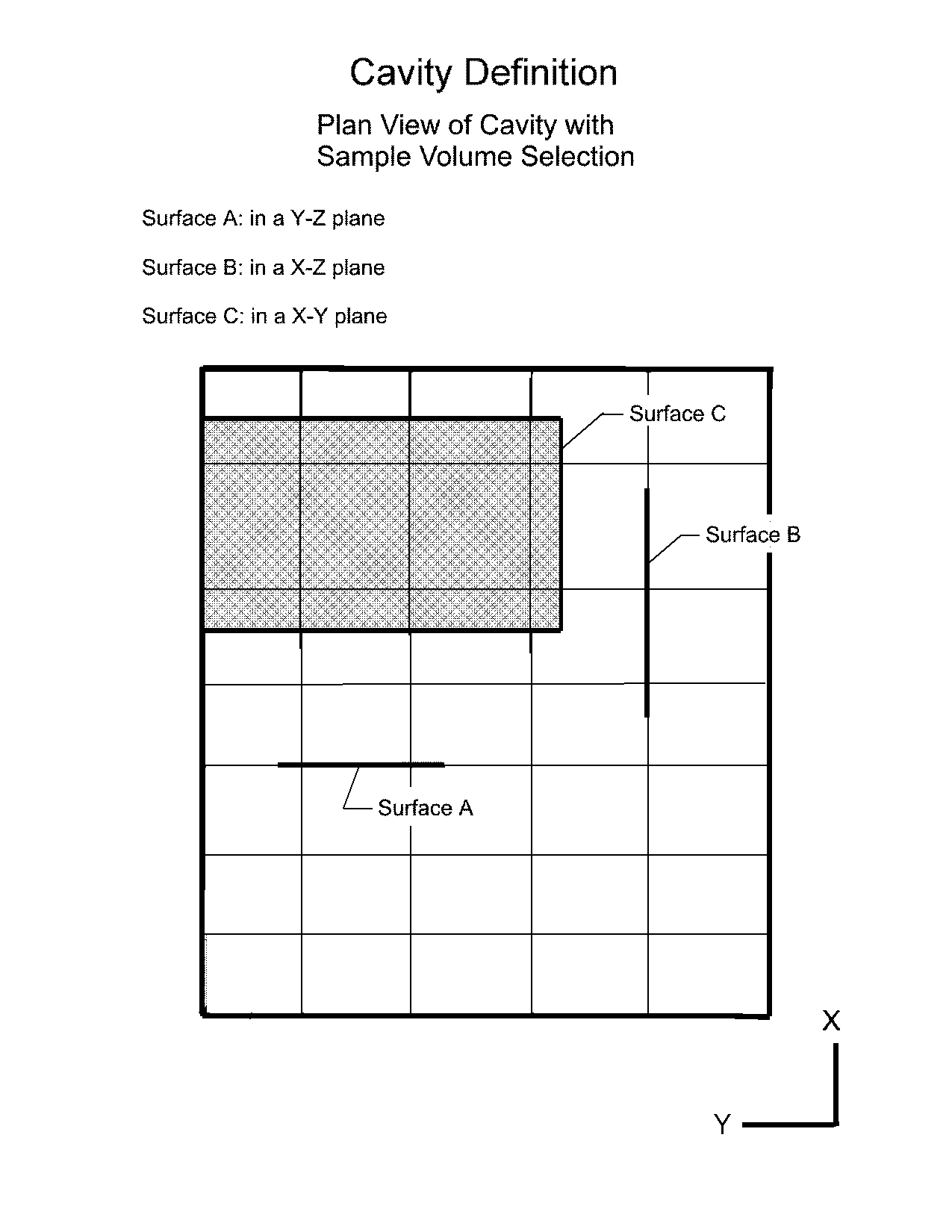

attached file: Figure10.gif)(See attached file: Figure2a.gif)(See attached

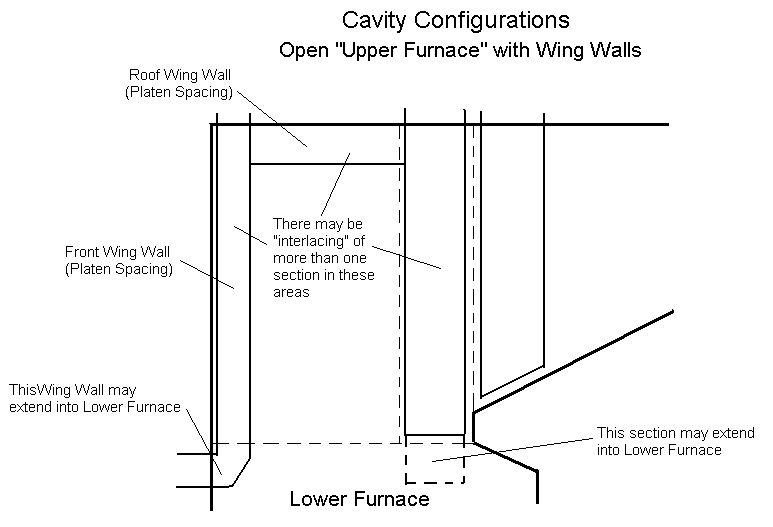

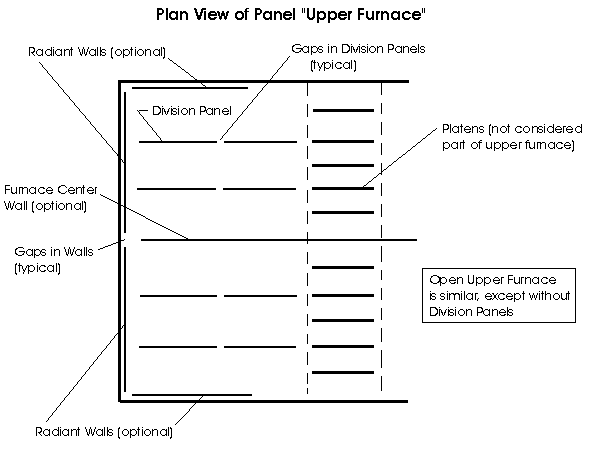

file: Figure2b.gif)(See attached file: Figure3.gif)(See attached file:

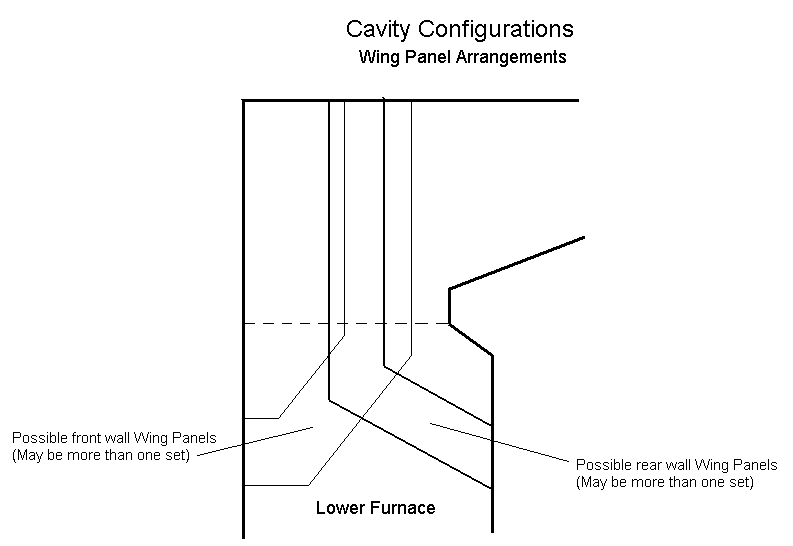

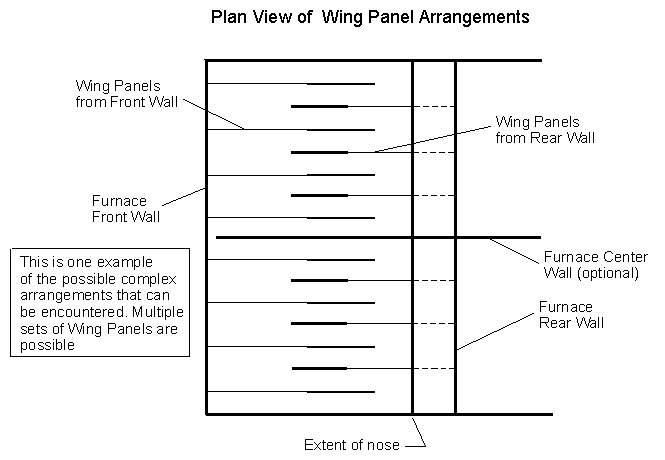

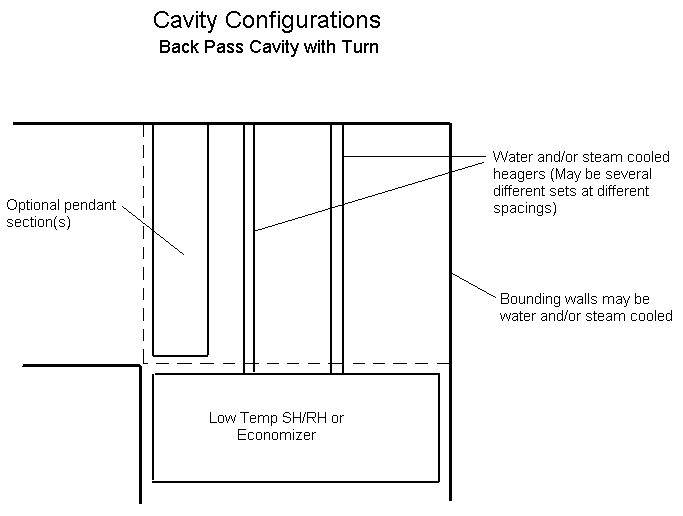

Figure4a.gif)(See attached file: Figure4b.gif)(See attached file:

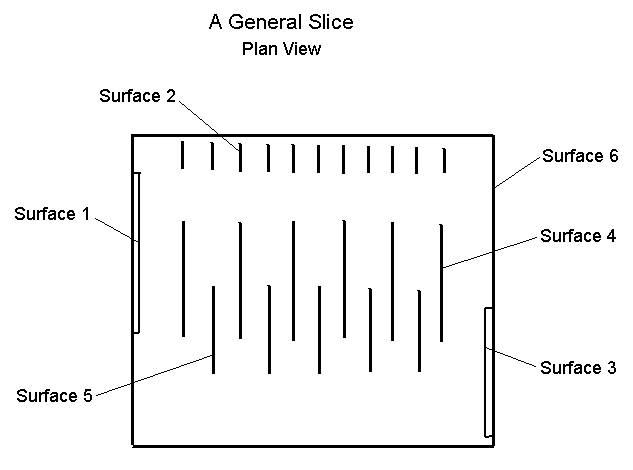

Figure5.gif)(See attached file: Figure6.gif)(See attached file:
Figure7.gif)(See attached file: Figure8.gif)(See attached file:

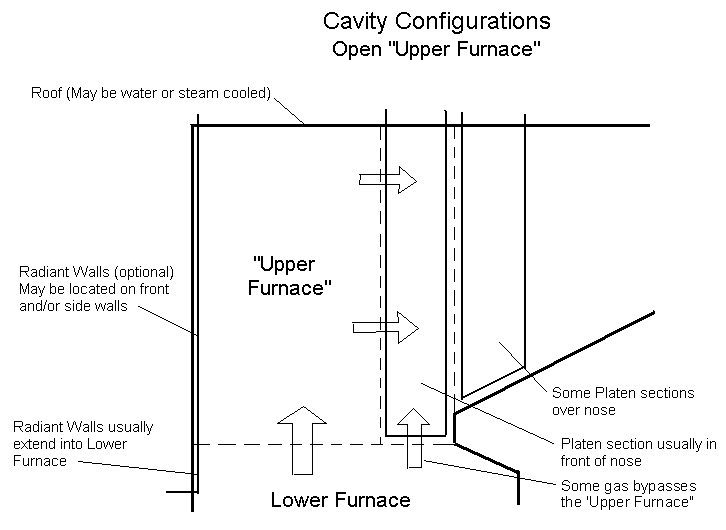

Figure1.gif)
