[Gmsh] Problem with embedded points

Alessandro Vicini a.vicini at alta-space.com
Thu Nov 13 15:23:58 CET 2014




Hullo everybody,

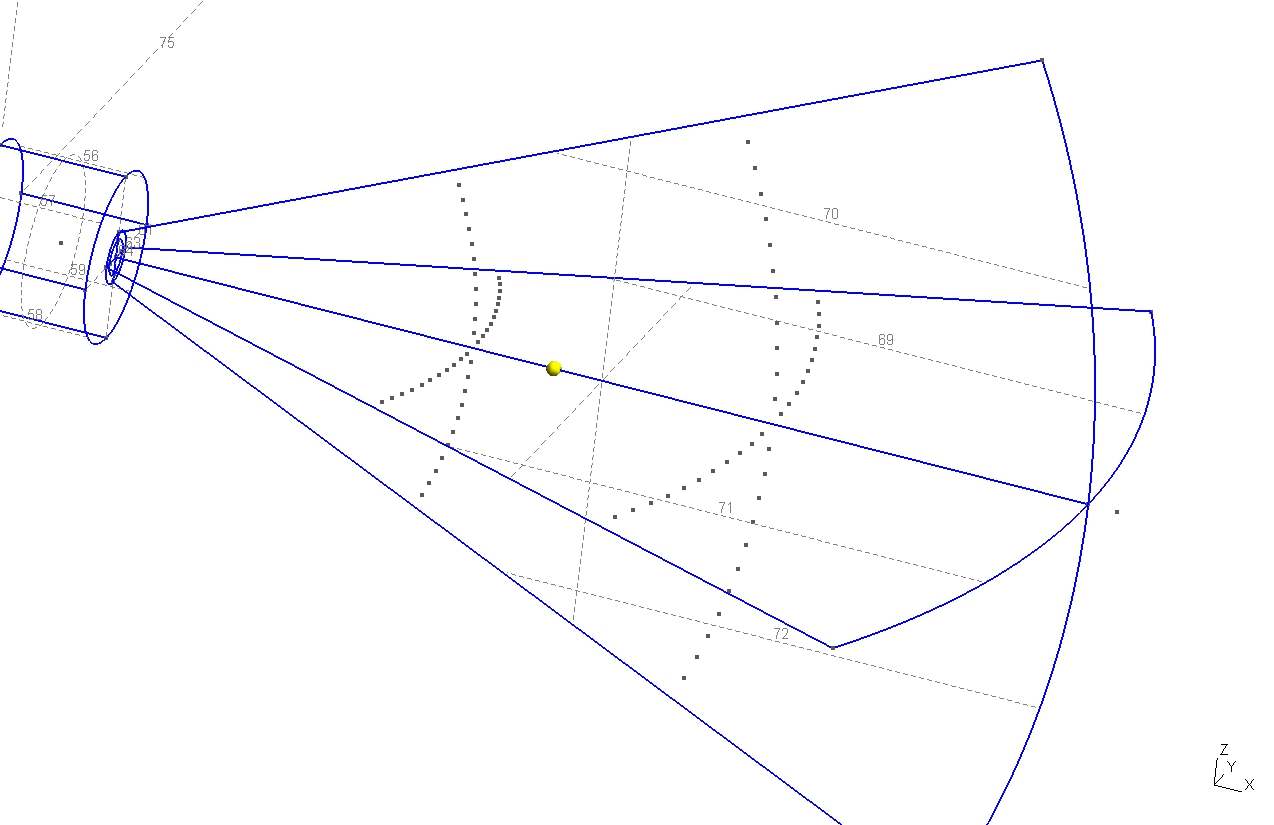

the points that you can see in the attached img_01 picture are embedded in the corresponding surfaces.

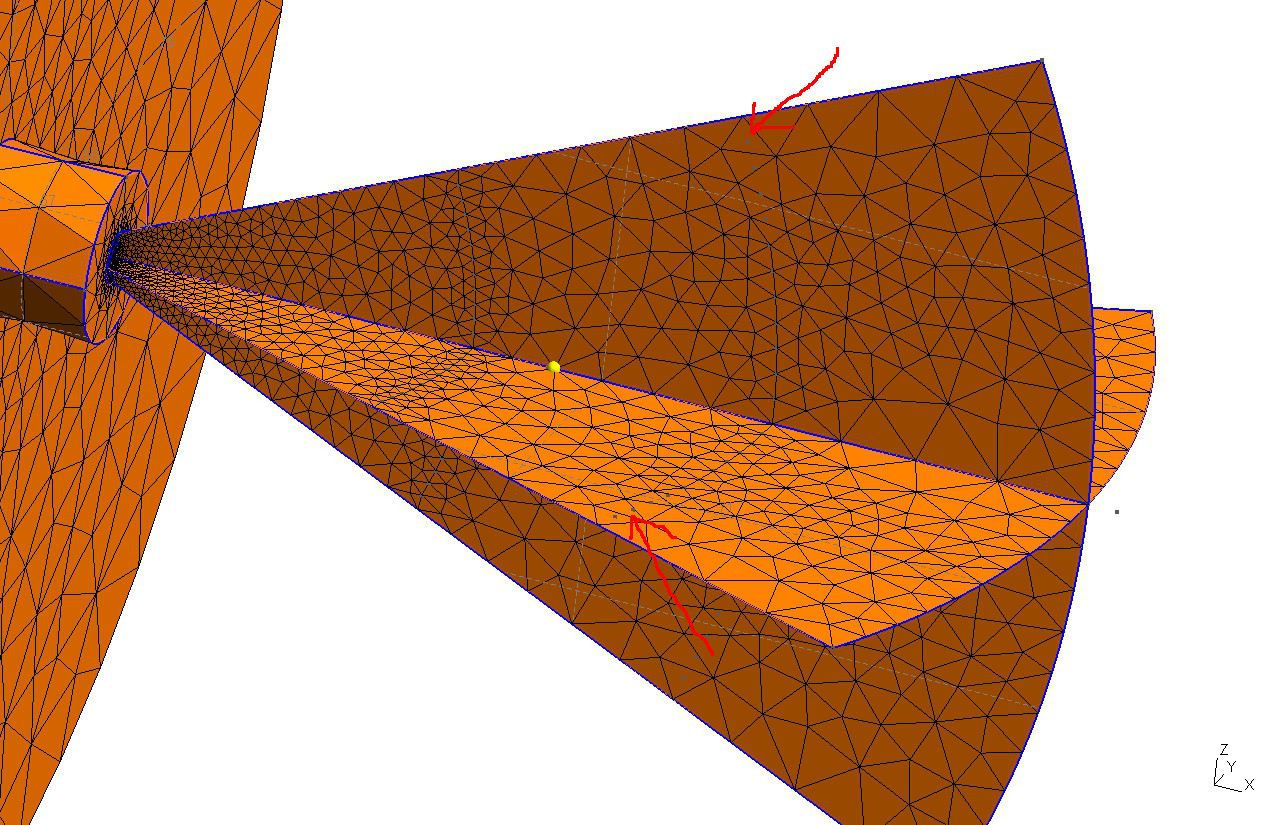

However, when I generate the 2D mesh, there are some of these points which are not comformal to the mesh, as you can see in img_02. Why?



Thank you.



Regards,



Alessandro
