[Gmsh] Gmsh Faild to 3D-Mesh Simple STEP file import

Erroll Brady erroll.brady at schafercorp.com
Fri Aug 29 22:59:54 CEST 2014


Hello Christophe Geuzaine and Jean-François Remacle,

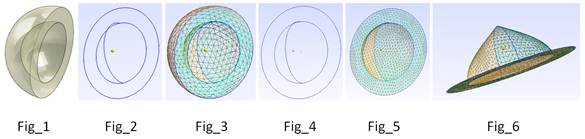

1) Load the STEP file in Fig_1 into Gmsh and Fig_2 is displayed after rotating the image.

2) Run 3D mesh and Fig_3 is displayed (Looks OK).

3) Save the Geo file and close Gmsh.

4) Reload Gmsh and load the saved Geo file and Fig_4 is displayed after rotating the image.

5) 3D mesh the loaded Geo file and Fig_5 is displayed.

6) Rotate Fig_5 and Fig_6 is displayed.

7) Fig_6 looks nothing like Fig_1 or Fig_3.

(STEP File Attached.)


[cid:image001.jpg at 01CFC391.81F07F10][cid:image002.png at 01CFC391.81F07F10]

Please advise.
Thank you,
Erroll Brady
