[Gmsh] igs to geo

[Fabian Braennstroem]

Hi,

    I have a small problem, when importing an igs (exported by
            ICEM) geometry. Actually the import works well,
    but as soon as I save it as a geo file, I get a lot more
    points then in the igs file. I attach to snapshots. Do I
    do anything wrong?
    The view is an extraction of a simple diffuser, which I
    want to mesh with hexa elements.

    Would be nice, if you have any hints!
    Fabian

--
-------------- next part --------------
A non-text attachment was scrubbed...

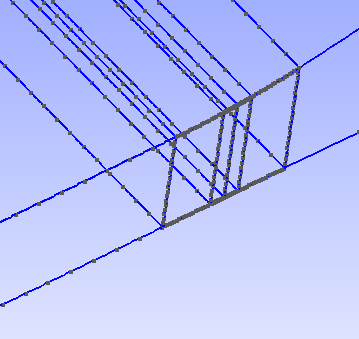

Name: Gmsh.png
Type: image/png
Size: 11047 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080719/e42e16f8/attachment.png>
-------------- next part --------------
A non-text attachment was scrubbed...

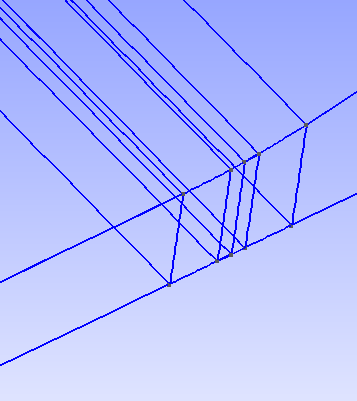

Name: Gmsh1.png
Type: image/png
Size: 9425 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080719/e42e16f8/attachment-0001.png>
