[Gmsh] gmsh 2.0.8 aborts or segfaults

Bernhard Kubicek bernhard.kubicek at arsenal.ac.at
Tue Oct 30 11:22:14 CET 2007


Hallo Werner,
(und schöne Gruesse aus Wien! :) )

Hi just took a look at your geo-files, and fear that I cannot be too
helpful. Personally, I would not trust the Coherence feature.

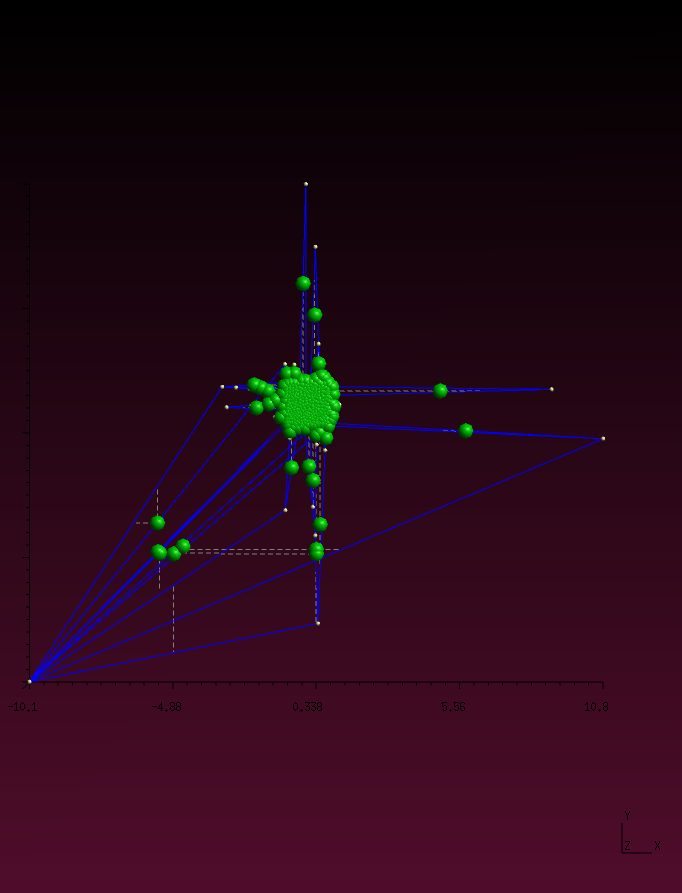

The second thing I noticed that the geometry that was displayed for
media_p01.geo does not look reasonable at all in my case, independent of
the possibly commented coherence command (see attached screenshot) [gmsh
2.0.8, Ubuntu Gutsy 32 bit, installed via repository, nvidia graphics
card].
Maybe you could also try with a gmsh compiled on x64.

A script that does the coherence should be quite easy to implement by
using a a minimum distance between points that are joined and
replacement map, and in a second stage a filter that removes lines
having both points equal, independent of the line direction.

Anyway, if you want to have the compumag 2007 proceedings, please sent
me a private message :)

very nice greetings,
 Bernhard Kubicek




On Mon, 2007-10-29 at 15:20 -0400, magpar wrote:
> Hello again,
>
> Just a quick follow-up on the problem reported previously:
>
> The second geo file attached to the previous email, which shows the
> problems, has a bunch of distorted volumes, which show up when rendering
> the geo file in gmsh. Usually my scripts remove these volumes and they
> do not appear to cause the segfault problems.
>
> Attached another example, which causes gmsh to segfault. This time
> without the distorted volumes.
>
> When opening this geo file with gmsh in the graphical user interface,
> gmsh throws these errors:
>
> gmsh media_p03.geo
>
> Info    : Reading 'media_p03.geo'
> Error   : Weird point 554 in Coherence
> Error   : Weird point 554 in Coherence
> Error   : Weird point 510 in Coherence
> Error   : Weird point 510 in Coherence
> Error   : Weird point 510 in Coherence
> [...]
>
> However, gmsh does display a reasonable geometry.
>
> Meshing leads to the segfault:
>
> gmsh -3 media_p03.geo
> (Mesh.Algorithm3D=4;)
>
> Info    : 16 points, 23 elements
> Info    : Meshing volume 23 (Netgen)
> Fatal   : Segmentation violation (invalid memory reference)
>
> gmsh -3 media_p03.geo
> (Mesh.Algorithm3D=1;)
>
> Info    : Meshing volume 473 (Delaunay)
> Info    : Meshing volume 474 (Delaunay)
> Fatal   : Segmentation violation (invalid memory reference)
>
>
> Thanks in advance for any help.
>
>
> Werner
>
> _______________________________________________
> gmsh mailing list
> gmsh at geuz.org
> http://www.geuz.org/mailman/listinfo/gmsh
