[Gmsh] need help on using Gmsh

[=?gb2312?B?s9nQodPw?=]

gmsh£¬ÄúºÃ£¡

	I met some problem when using Gmsh.

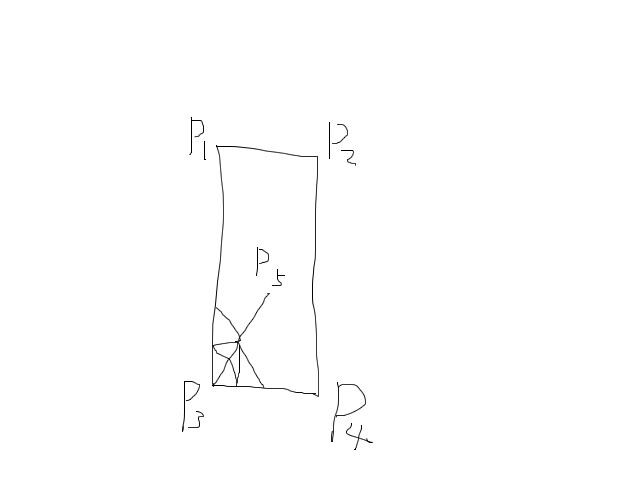

	It is easy to triangulate a plane within a lineloop. But I need trianglelate a 2D model which has a margin as a lineloop and some inside fixed lines(they can not be changed), just like "pic1", how can I use Gmsh to do this?  How can I init the model in "mytest1.txt"? With the help of tutorial, I just can generate 1D mesh by add points in the lines. I need 2D mesh with adding refine points inside the region and the lines.
	eager for your help.

¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ÖÂ
Àñ£¡


¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡³ÙСÓð
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡cxy at ios.ac.cn
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡2005-11-28
-------------- next part --------------
A non-text attachment was scrubbed...
Name: pic1.jpg
Type: image/jpeg
Size: 30835 bytes
Desc: not available
Url : http://www.geuz.org/pipermail/gmsh/attachments/20051128/d2098a51/pic1-0001.jpg
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mytest1.txt
Type: application/octet-stream
Size: 494 bytes
Desc: not available
Url : http://www.geuz.org/pipermail/gmsh/attachments/20051128/d2098a51/mytest1-0001.txt
