[Gmsh] How to force the triangle

Bernhard Stoevesandt bernhard.stoevesandt at uni-oldenburg.de
Tue May 24 10:56:40 CEST 2005


hi,

as i'm very happy with gmsh, i'm trying to make it fit to all my needs.
well, one thing i would like to achieve is an automated grid generation
i do not need to check every time.

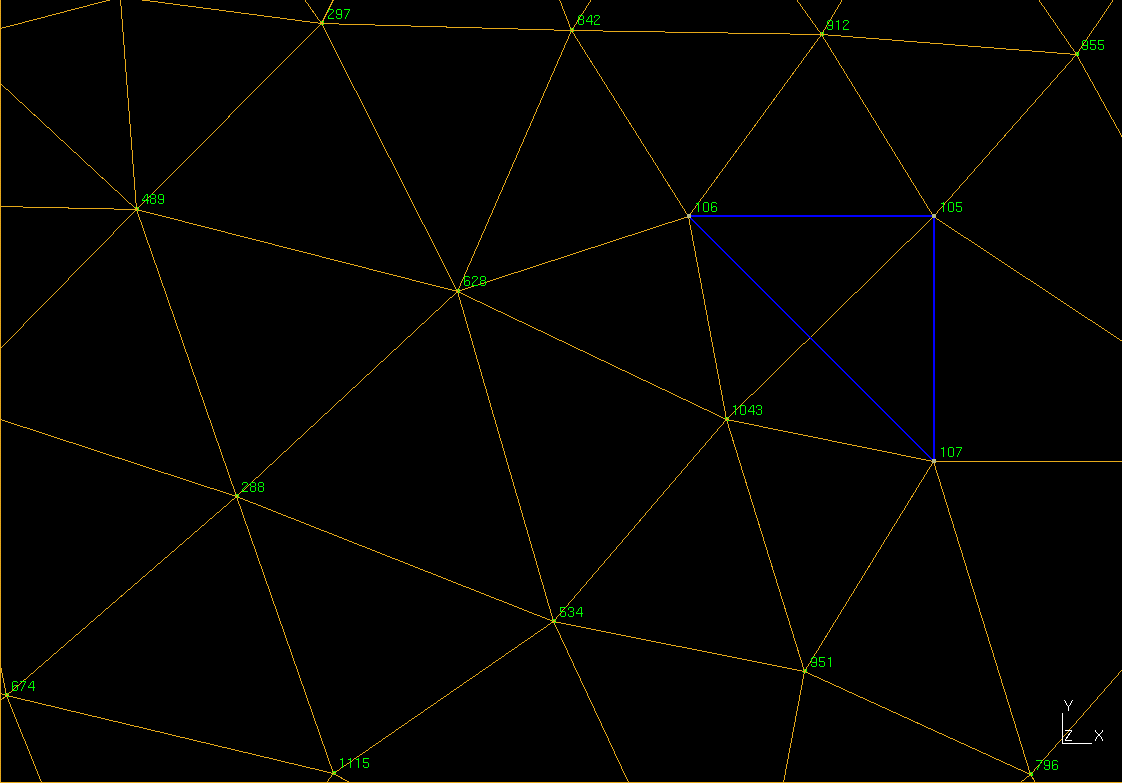

well, now i got this type of problem (see picture). i tried to force a
certain triangle (and triangle size) at a spot behind an airfoil. so i
defined the over all domain, the airfoil and two triangles behind. but,
somehow the 2D grid cuts through one of the triangles. how can i avoid this?

bernhard stoevesandt
--
---------------------------------------------------------------------------------------
Dipl. Phys. Bernhard Stoevesandt

AG Hydro in der Energie- und Halbleiterphysik
Fakultät V
Carl-von-Ossietzky Universität Oldenburg

Carl-von-Ossietzky-Str.9
26111 Oldenburg

Tel: 0441/798-3577	   Fax:0441/798-3579
---------------------------------------------------------------------------------------
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: fh79.geo
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20050524/6f759455/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: fh79.gif
Type: image/gif
Size: 16563 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20050524/6f759455/attachment.gif>
