[Gmsh] attractor points

Guido Blöcher bloech at gfz-potsdam.de
Thu Mar 10 15:15:14 CET 2005


Dear Gmsh'er

I have some problems with attractor points. I know attractors are still
experimental in this version (1.59), but will be further developed.

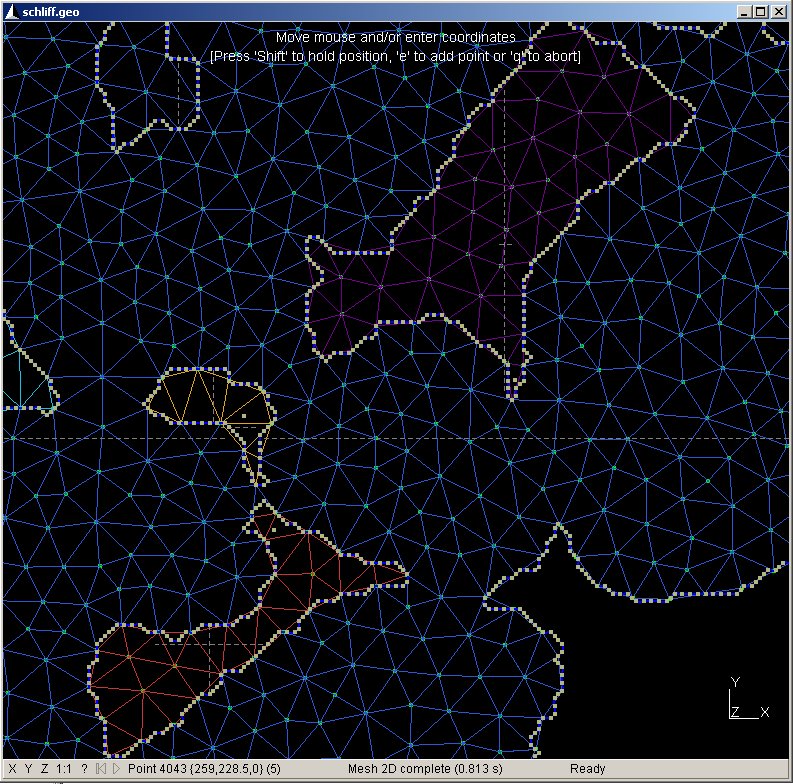

I send two figures, the first one shows the mesh without attractor

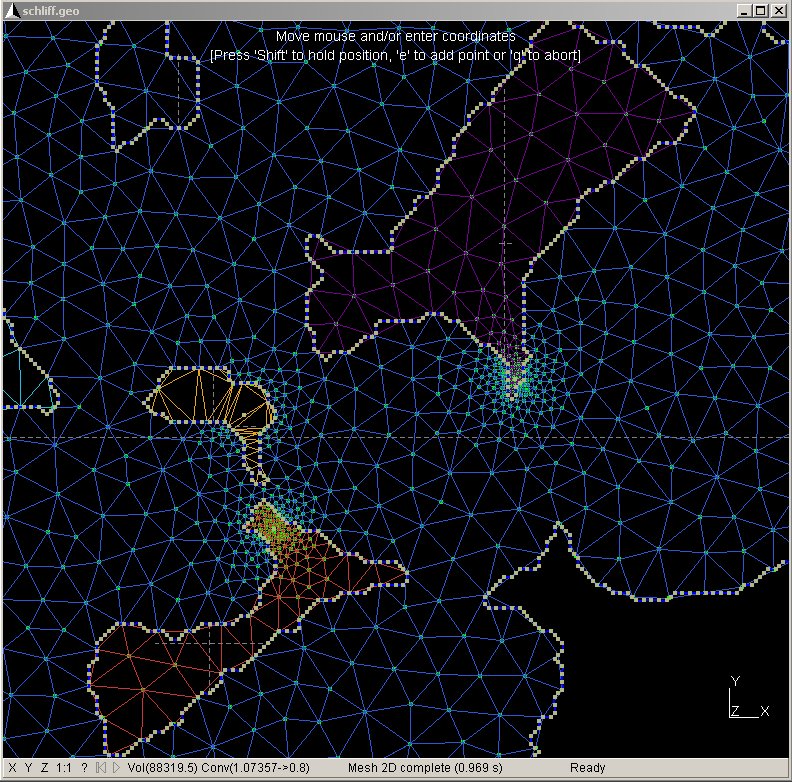

points and the second one with attractor point. You can see that
attractor points only work, than the surface (you will refine) still has
nodes within the boundaries of the surface. Otherwise only the boundary
of the surface will be refined.

best regards

Guido
